Balcony door IOU

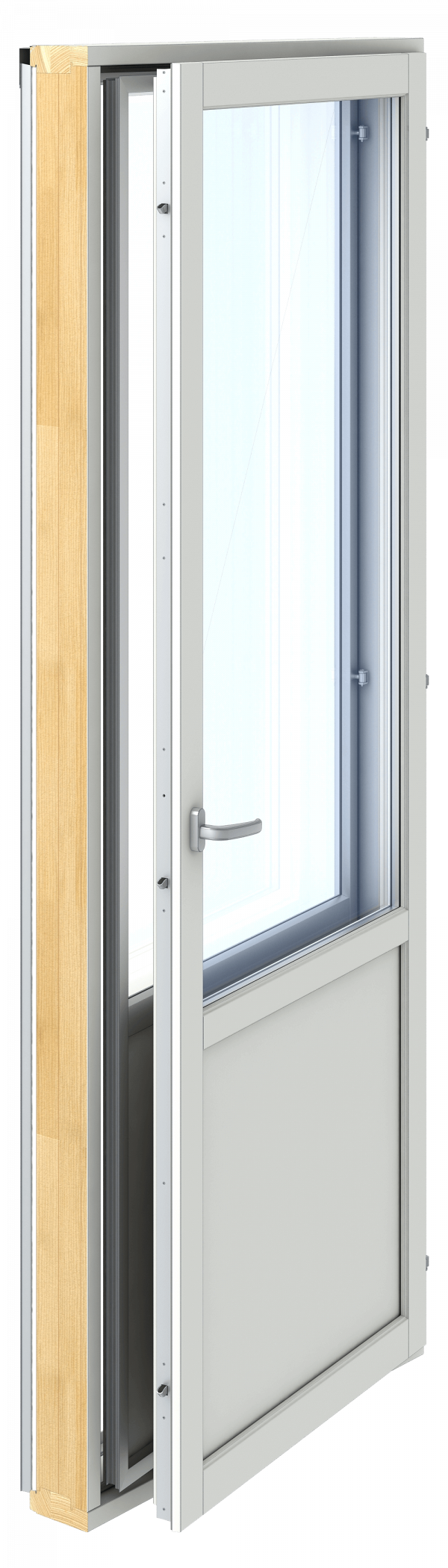

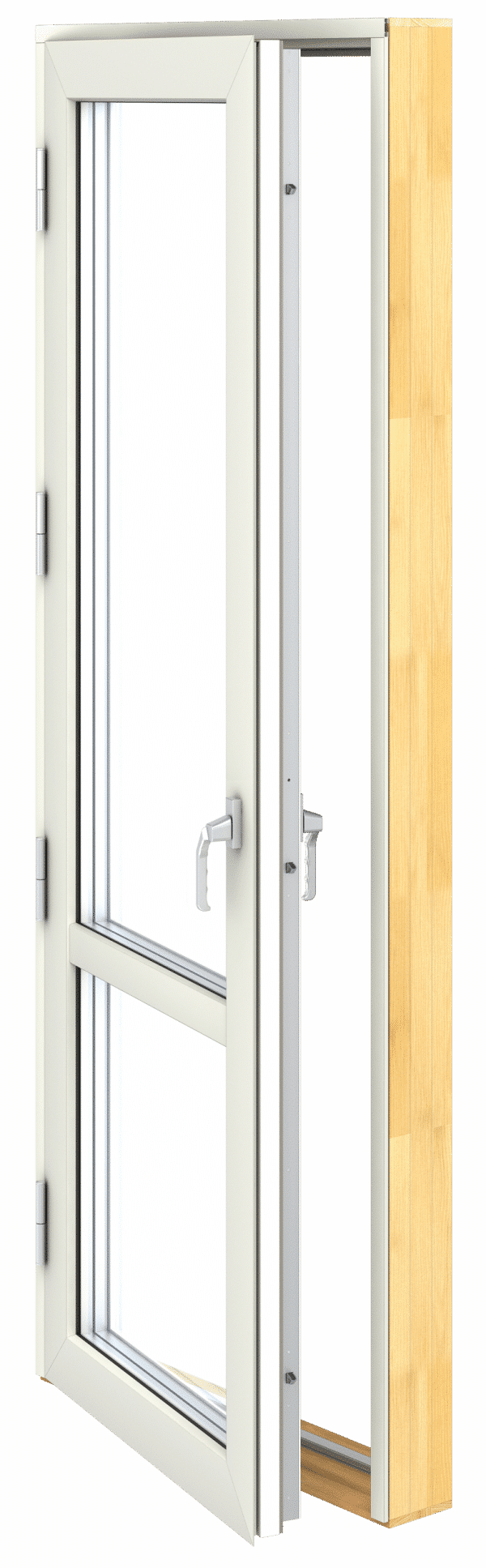

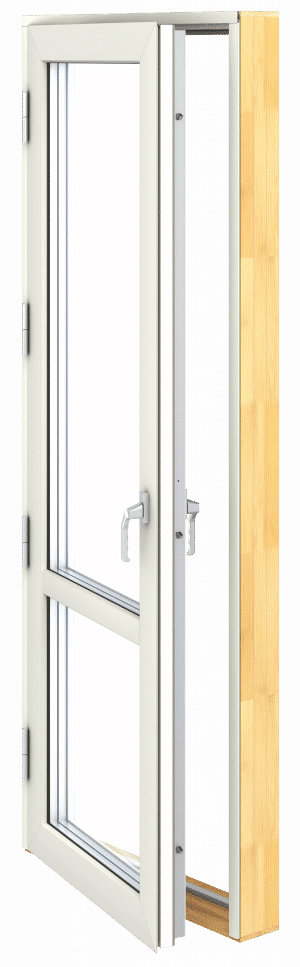

High-quality, economical and energy efficient Fenestra IOU balcony doors are perfect for apartment buildings as well as private residences. The single leaf triple-glazed wood aluminium balcony door opens outwards. The frame and the external surface of the door leaf of the balcony door is covered with aluminium profiles. The doorsill of the balcony door is made of oak. There are several design options available: the full glass, special mid-frame solution or the partially blocked balcony door. There are many different paint and stain options. All our products are tested by approved test labs.
Outwards openable balcony door FENIX PATIO
- U-value up to 0,74 W / m²K
- Durable and easy to maintain
- Made of high-quality materials compliant with quality standard EVS-EN 14351
- Wide selection of glazing
- Selective glass insures world class thermal insulation
- Balcony doors are custom made based on clients’ measurements and in compliance with the ISO 9001 quality system.
WOOD

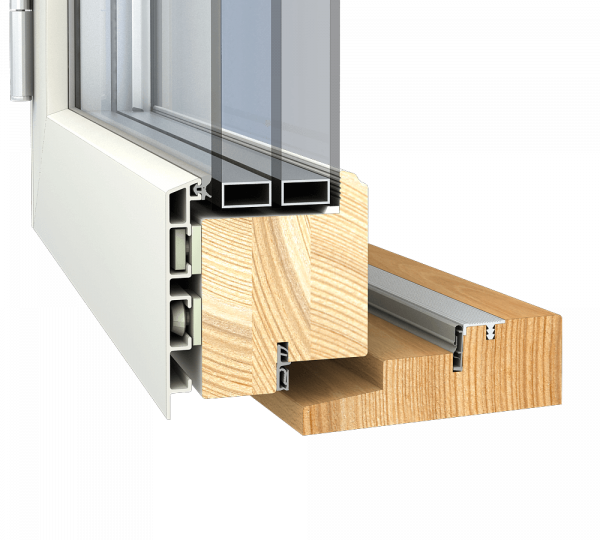

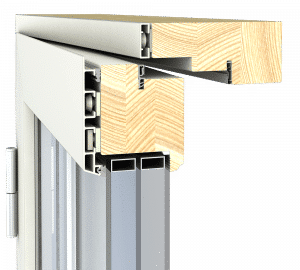

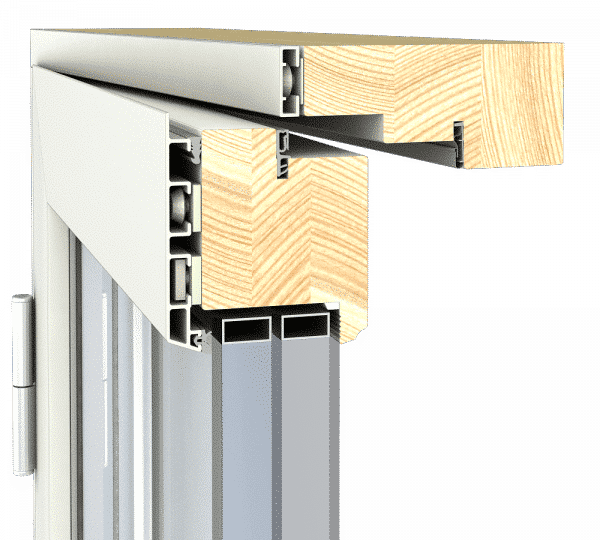

Wood has been selected and processed based on quality standard RT 103241. Architraves are made of glued laminated timber (pine) with at least three layers using weatherproof glue D4. Window frames are made of knotless pine and there are no finger joints on the visible stained/glazed surface. The doorsill of the balcony door is made of oak.
Aluminium
Weatherproof and easy-to-maintain aluminium parts are powder coated or anodized. There are a wide range of colour options, ask for further information.
Glass

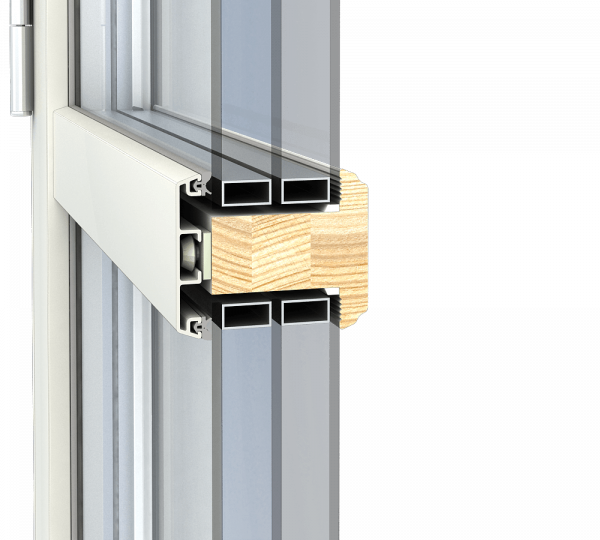

The standard package includes triple glazing with improved properties that are compliant with SFS standard 3K4Sel/4/4Sel-18 CU+ARG.
The glazing is 48 mm thick. The middle strip is 18 mm wide.
Safety glasses, glazing for improved sound insulation and reduced solar radiation effect available with special orders.
Technical specifications of product
Insulation: ?
U-value with standard glass 0,78
U-value with special glass 0,74
test measure 990 x 2 090 mm
Sound insulation: ?
Standard glass Rw = 33-45 dB
Special glass up to Rw = 42 dB
Dimensions:
Standard architrave depth options 130 mm, 170 mm and 210 mm.
Door dimensions:
Width: 637 – 1 210 mm
Height: 1 841 – 2 414 mm
Larger and smaller dimensions available for special solutions
Sealing:
We use TPE sealants.
Surface finish:
Wood details are coated in our factories with weatherproof paints (RAL), stains or lacquers (AkzoNobel TINTEX). There are a wide range of colour options.
ACCESSORIES
Balcony door IOU
Fenestra products come with handles and anti-closure latches included as standard. We can also provide you with suitable handles with a child lock for the windows and balconies that you need. There are a wide range of different models: explore our standard range below and find the right one for you.
Balcony door IOU
Fenestra windows and balcony doors come in a wide selection of colours. Check out a suitable RAL or RR catalogue for preferred colours and the Akzo TINTEX catalogue for a preferred stain.
Balcony door IOU
Window glazing can serve as a decorative element in the home or, where necessary, obscure the view from the outside or the inside. For example, Satinovo glass is an excellent choice for washrooms as it lets in light while shielding you from the eyes of outsiders. We offer something for everyone.
Balcony door IOU
Stylish venetian blinds that match your home’s decor make life as convenient as possible. We recommend ordering them with the windows, as they are much more costly and time-consuming to install later.
Balcony door IOU
Air vents help ensure functioning ventilation in your home by keeping indoor air fresh and healthy. The vents are designed to mix outdoor air with the warm indoor air in the upper part on the room, thereby avoiding draught.
